WIRELESS SIGNAL TORQUE WRENCHES

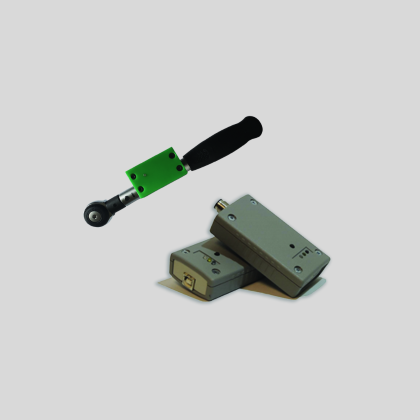

RADIO TRANSMITTER MODULE FOR TORQUE WRENCH ERF-M

Entorquer-KvL Radio transmitter module for transforming clicker torque wrenches to wireless signal wrenches!

High endurance, industrial design, (Long life-term, more than 200,000 tightening with the same battery, The 867 MHz is freely usable frequency band in India.

Transmission range 5 to 20 meters in factory environment, Disturbance protected, secured radio contact. (Does not disturb the DECT, WLAN, PMR systems.)

Easy installation, no expertise required. System design verified in industrial environment. LED indications for OK & low battery (Works with Most of the Click type torque wrench makes and models available internationally).

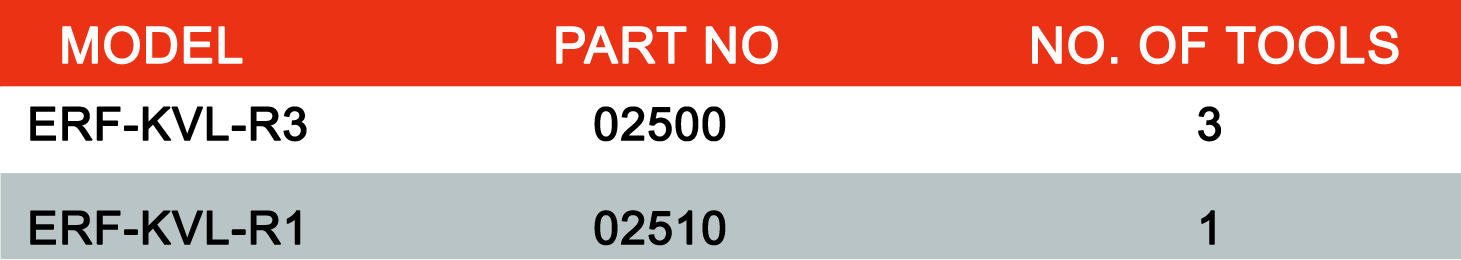

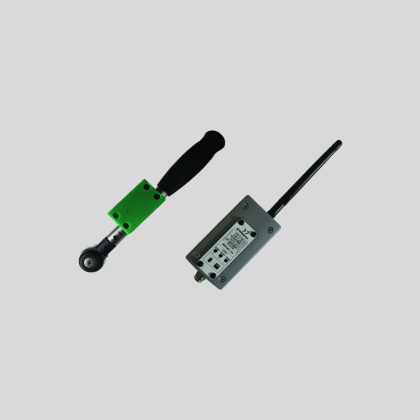

Torque wrench radio data receiver: ERF- Kvl-R3

Can connect to an I/O device (e.g. PLC). Can receive Entorquer-KvL compatible radio signals, and can send commands to the device. The device transmits the result (OK) to the PLC. ERF-R3 can connect and receive signals from 3 transmitters at a time.

Error -proof, secure communication between the transmitter and the receiver. The transmission method was designed to ensure that no part of the message is lost within the area of reception. The frequency bands used will not interfere with any DECT, WLAN, PMR, or RFID systems. 3 color LED for confirmation of each transmitter signal.


Features:

• Power supply 24V DC.
• Current consumption greater than 5mA Control output max50mA, load short circuit protection.
• Frequency 867 MHz.
• High torque power tools

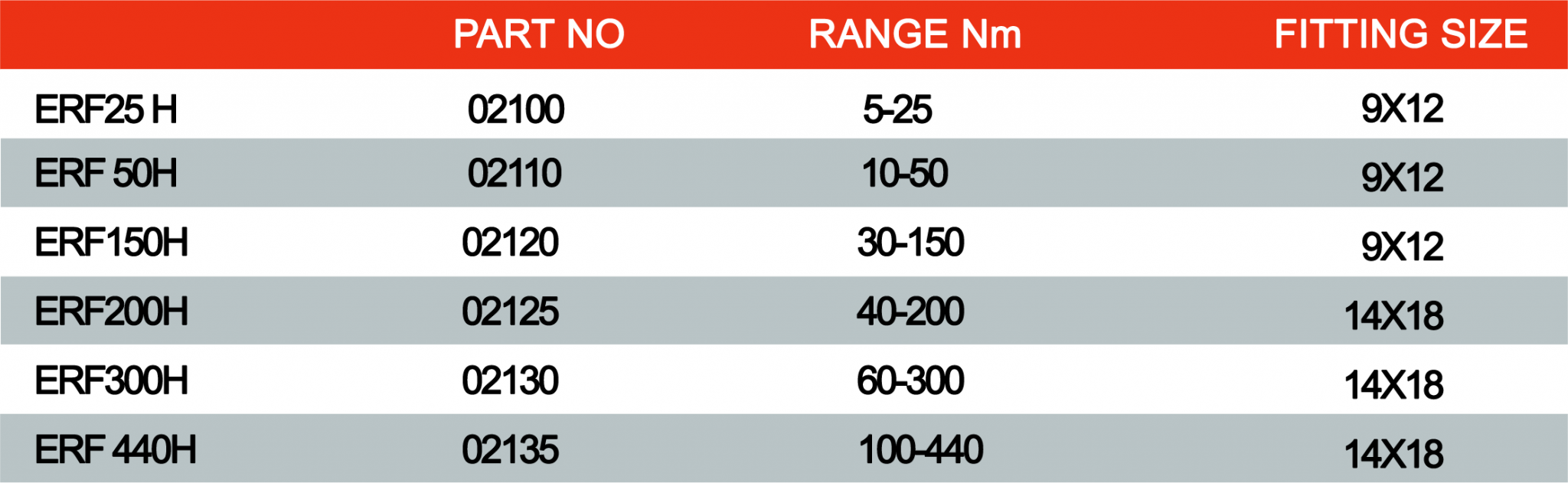

Wrenches are with 867Mhz Transmitter ERF-MI mounted on it. *interchangeable ratchet heads and open ends are available as per application requirements

RECEIVER

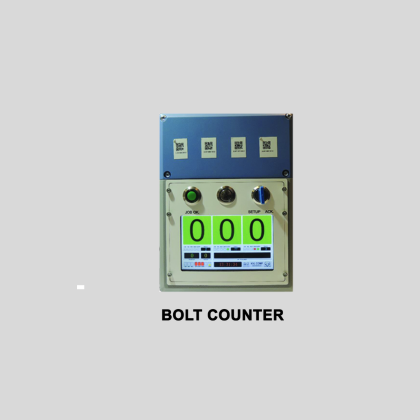

Counter
Counts Number of bolts & batch LCD display with tool status indication, Interlocking with PLC.
